होम उत्पादHRSG Heat Recovery Steam Generator

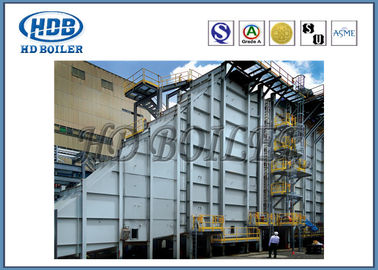

High Pressure HRSG Heat Recovery Steam Generator For Power Plant

High Pressure HRSG Heat Recovery Steam Generator For Power Plant

    • High Pressure HRSG Heat Recovery Steam Generator For Power Plant
    • High Pressure HRSG Heat Recovery Steam Generator For Power Plant
    • High Pressure HRSG Heat Recovery Steam Generator For Power Plant
    • High Pressure HRSG Heat Recovery Steam Generator For Power Plant
  • High Pressure HRSG Heat Recovery Steam Generator For Power Plant

    उत्पाद विवरण:

    Place of Origin: CHINA
    ब्रांड नाम: HD BOILER
    प्रमाणन: ISO9001 , SGS , TUV , ASME , EN
    Model Number: HRSG

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 Set
    मूल्य: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 Sets Per Year
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New Type: Natural Circulation
    Pressure: High Pressure Usage: Industrial
    Output: Steam Dimension(L*W*H): customization
    Fuel: waste heat Color: customized

    German standard Cement kilns single pressure HRSG Renewable Energy Waste heat boiler



    Description



    Along with sustainable development,recycling economy,energy conservation and low-carbon economy ideas put forward one by one.our cogeneration industry has experienced from scratch,small to large development process.

    Cogeneration production process is converted waste heat to electrical energy technology.Cogeneration not only energy,as well as environmentally.Important cogeneration equipment room is HRSG.It uses gas,waste and other working fluid in the heat as a heat source or flammable substance,producing steam for power generation.As the working fluid temperature is not high,so the boiler bulky,consumed more than metal.Mainly used for high-temperature waste heat power.



    Technical Parameter



    Cement production line capacity t/d 1000 2500 5000 10000
    Boiler inlet flow Nm3/h Kiln(front) 60000 88000 243000 472000
    Kiln(tail) 76000 170000 328000 612000
    Boiler inlet gas temperature℃ Kiln(front) 370 360 380 390
    Kiln(tail) 360 320~360 330 330
    Rated evaporation t/h Kiln(front) 5.8 7.25 24 50
    Kiln(tail) 7.5 10~15.8 20~24.6 35.5
    Rated steam pressure Mpa Kiln(front) 1.25 1.25 1.25 1.25
    Kiln(tail) 1.25 1.25 1.25 1.25
    Rated steam temperature℃ Kiln(front) 340 330 350 360
    Kiln(tail) 340 300~340 310 310
    Boiler structure Kiln(front) Vertical Vertical Vertical Vertical
    Kiln(tail) Vertical Vertical and Horizontal Vertical and Horizontal Vertical



    Impact



    Significant progress has been made in using the waste process heat in cement plants. But the use of this process heat to generate electricity fell during past years, which saw low and steady power prices. Times are changing. Deregulation is bringing the specter of extremely volatile electricity prices, loss of control over power costs, and the real likelihood that energy prices may increase in the near term in some areas.



    Cerficate



    High Pressure HRSG Heat Recovery Steam Generator For Power Plant



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 400,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    High Pressure HRSG Heat Recovery Steam Generator For Power Plant
