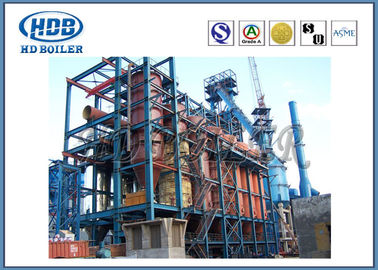

Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler

Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler

    • Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler
    • Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler
    • Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler
    • Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler
  • Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler

    उत्पाद विवरण:

    Place of Origin: Zhangjiagang,Jiangsu,China
    ब्रांड नाम: HD Boiler
    प्रमाणन: ISO9001,ASME,Grade A,SGS,EN,TUV
    Model Number: CFB Boiler

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1Set
    मूल्य: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 Sets /Year
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New Structure: Fluidized bed
    Fuel: Coal / Biomass Water Circulation: Natural circulation
    Pressure: High Pressure Range of Applications: Industrial/Power station
    Specification: Customized Manufacturing Level: A
    Place Style: Vertical Burning StylBurning Style: Fluidized Bed Furnace

    Saving Energy High Pressure CFB Boiler and Utility Boiler With ASME Standard



    Product Description


    HD boiler design and manufacture of a circulating fluidized bed boiler using clean combustion technology,the new boiler with high combustion efficiency and low pollution of typical characteristics of cleaning from the experience of other circulating fluidized bed boiler designed on the basis of optimizing.The coal adaptability ,can be applied to bituminous coal,lignite coal,lean coal,mixed coal and other different kinds of fuel,the combustion efficiency up to 99%.



    Structure Features

    • Natural circulation water-tube boiler single boiler barrel, an n-shaped structure.
    • The hearth is membrane water wall hanging closed structure.
    • Adopting the water cooling air chamber and a water cooling cloth wind plate, under the bed of water.
    • Separated by high temperature insulation volute cyclone cylider, outer furnace arrangement.
    • Superheater, economizer, air preheater is arranged in the tail shaft.​​



    Parameter



    Model Capacity (t/h) Pressure(MPa) Steam temperature (ºC)

    Feed water temperature

    (ºC)

    Desulfurization efficiency
    HD-35/3.82-M 35 3.82 450 150 min 82
    HD-35/5.3-M 35 5.3 450 150 min 82
    HD-75/3.82-M 75 3.82 450 150 min 82
    HD-75/5.3-M 75 5.3 485 150 min 82
    HD-75/9.8-M1 75 9.8 540 215 min 82
    HD-130/3.82-M 130 3.82 450 172 min 82
    HD-130/5.3-M 130 5.3 485 172 min 82
    HD-130/9.8-M 130 9.8 540 215 min 82

    Fuel:soft/lean/bituminou coal, anthracite,lignite,biomass and etc.



    Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler



    Certifications


    Industrial Fluidized Bed CFB Utility Boiler Power Plant , High Pressure Steam Boiler



    Company Information


    HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
