Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard

Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard

    • Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard
    • Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard
    • Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard
    • Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard
  • Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard

    उत्पाद विवरण:

    Place of Origin: Zhangjiagang,Jiangsu,China
    ब्रांड नाम: HD Boiler
    प्रमाणन: ISO9001,ASME,Grade A,SGS,EN,TUV
    Model Number: CFB Boiler

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1Set
    मूल्य: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
    Supply Ability: 20 Sets /Year
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New Structure: Fluidized bed
    Fuel: Coal / Biomass Water Circulation: Natural circulation
    Pressure: High Pressure Range of Applications: Industrial/Power station
    Specification: Customized Manufacturing Level: A
    Place Style: Vertical Burning Style: Fluidized Bed Furnace
    After-Sales Service Provided: Engineers Available To Service Machinery Overseas

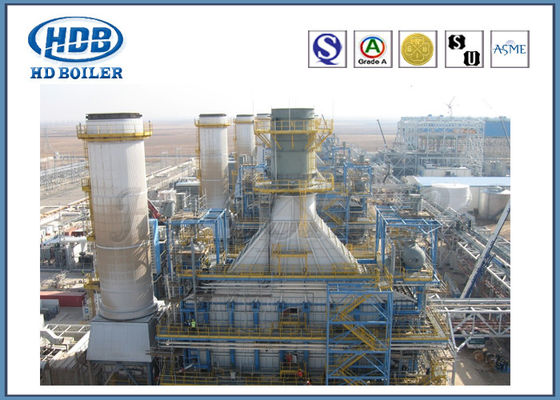

    Environmental Friendly High Efficiency Coal Fired CFB Boiler and Utility Boiler with ISO Standard



    Product Description


    HD Circulating fluidized bed is of low-temperature combustion, therefore, nitrogen oxides emissions of such boiler is much lower than that of coal-powder boiler, and such boiler could directly desulfurized during combustion process. Circulating fluidized bed boiler with high desulfurization rate is economical.


    Circulating fluidized bed boiler could adopt various coal types and has high combustion efficiency, which is especially suitable for low quality, low calorific value coal.
    The ash of circulating fluidized bed boiler is of high activity, thus it is easy to realized comprehensive utilization without secondary pollution.



    Circulating fluidized bed boiler could adjust its load in a wide range. Lowest load can be reduced t 30% of full capacity.



    Structure Features

    • Natural circulation water-tube boiler single boiler barrel, an n-shaped structure.
    • The hearth is membrane water wall hanging closed structure.
    • Adopting the water cooling air chamber and a water cooling cloth wind plate, under the bed of water.
    • Separated by high temperature insulation volute cyclone cylider, outer furnace arrangement.
    • Superheater, economizer, air preheater is arranged in the tail shaft.​​



    Parameter



    Model Capacity (t/h) Pressure(MPa) Steam temperature (ºC)

    Feed water temperature

    (ºC)

    Desulfurization efficiency
    HD-35/3.82-M 35 3.82 450 150 min 82
    HD-35/5.3-M 35 5.3 450 150 min 82
    HD-75/3.82-M 75 3.82 450 150 min 82
    HD-75/5.3-M 75 5.3 485 150 min 82
    HD-75/9.8-M1 75 9.8 540 215 min 82
    HD-130/3.82-M 130 3.82 450 172 min 82
    HD-130/5.3-M 130 5.3 485 172 min 82
    HD-130/9.8-M 130 9.8 540 215 min 82

    Fuel:soft/lean/bituminou coal, anthracite,lignite,biomass and etc.



    Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard



    Certifications


    Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard



    Company Information


    HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.



    Coal Fired Utility Industrial Hot Water Boiler High Pressure Anti Shock ISO Standard
