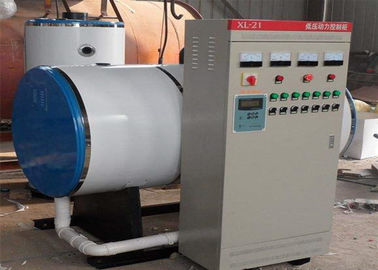

Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic

Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic

    • Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic
    • Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic
    • Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic
    • Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic
  • Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: HD BOILER
    प्रमाणन: ISO9001 , ASME , GradeA , SGS , EN ,TUV
    Model Number: CLHS , CWNS

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1 Set
    मूल्य: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 25 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 Sets / Month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Function: Steam Boilers Installation: Packaged Boiler
    Media: Steam Pressure: Micro - pressure
    Transport Package: Plywood Case Drum Placement: Horizontal Boiler
    Cladding Material: SUS304, 316L Port: Shanghai

    Horizontal Oil and Gas Multi Fuel Industrial Steam Boiler Cost Effective Fully Automatic



    Product Description



    CLHS automatic oil(gas) fired atmospheric pressure hot water boiler adopts vertical/horizontal structure.Fuel is burning under micro-pressure,high temperature smoke in the funace to complete the process of radiation and convection heat after entering the atmosphere.It can be used for heating,living water and heat production to provide endless power.



    Technical Parameters



    Model CLHS 0.06-85/60-Y.Q 0.12-85/60-Y.Q 0.18-85/60-Y.Q 0.24-85/60-Y.Q 0.35-85/60-Y.Q 0.48-85/60-Y.Q
    Item Unit
    Rated power MW 0.06 0.12 0.18 0.24 0.35 0.48
    Total heat 104Kcal 5 10 15 20 30 40
    Rated Working Pressure MPa Atmospheric Pressure

    Fuel

    Consumption

    Light Diesel Kg/h 5.4 10.8 16.2 21.6 32.5 43.2
    Town gas Nm3/h 14.2 28.3 42.5 56.6 85 113.2
    Natural Gas Nm3/h 5.8 11.7 17.5 23.4 35 46.8
    LPG Nm3/h 2.5 5 7.5 10 15 20
    Water Inlet dia. DN 50 65 65 65 65 80
    Return pipe dia. DN 50 65 65 65 65 80
    Blowdown Valve Dia. DN 25 25 25 25 25 40
    Voltage V 220 220 220 220 380 380
    Overall Dimension mm

    850×760

    ×1320

    1010×860

    ×1600

    1170×910

    ×1820

    1290×1030

    ×1980

    1480×1180

    ×2050

    1570×1270

    ×2120

    Net Weight Kg 280 420 460 530 790 960



    Features



    • Imorted high-quality burner(Low NOX burner),the harmful components in flue gas is lower than the National Standard (NOx emission is lower than 400mg/m3),so it's environmentally friendly product.Pressure atomization,low noise,high efficiency and safety,(fuel oil)is burning completely,and environmental indicators are in line with national requirements.

    • Boiler body is connected to the atmosphere,equipped with expansion tank,without potential safety problems under the condition of atmospheric pressure operation.

    • Boiler operation is achineving automatic control and automatic adjustment of water outlet temperature.



    Quatily Control



    • Fabrication area of 200,000 square meters

    • 150 Engineers

    • 600 Coded welders

    • 60 Licensed Inspectors(NDT Level-III instructors)

    • Class-A Licenses for Design and Manufacture Boiler

    • ISO 9001:2008 Quality System

    • ASME Certificate of Power Boilers

    • ASME 'S','U' and NB stamp authorization





    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

    Industrial Steam Hot Water Boiler Oil / Gas Multi Fuel Horizontal Fully Automatic
