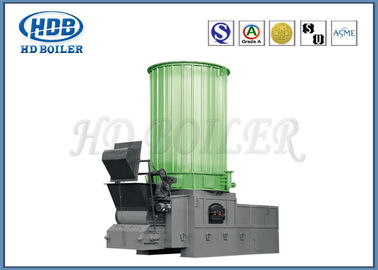

YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube

YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube

    • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
    • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
    • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
    • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
  • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube

    उत्पाद विवरण:

    Place of Origin: China
    ब्रांड नाम: HD Boiler
    प्रमाणन: ISO9001,ASME,Grade A,SGS,EN
    Model Number: YLL/YGL

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1Set
    मूल्य: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
    Supply Ability: 500 Sets / Per Year
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Condition: New Structure: Fire/Water Tube
    Fuel Available: Coal Burning Style: Internal Firing Boiler
    Manufacturing Level: A Surface Treatment: Painted
    Operation: Automatic Place Style: Vertical





    Structural features


    1, YLL/YGL type series organic heat carrier furnace for packaged forced circulation chain grate/ fixed furnace boiler. Boiler by upper body and lower grate/ fixed furnace composition, jobsite combination.



    2, Boiler heating surface using dense row circular coil, by inside and outside, multilayer tight row circular tube composition.



    3, Boiler structure is compact, cover an area of an area small, high degree of assembly, installation period is short.



    The performance advantage


    1, Energy-efficient

    2, Safe and reliable

    3, Environmental protection



    YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube





    Parameter



    Model



    YGL

    -180M

    YGL

    -3000M

    YGL

    -350M

    YGL

    -460M

    YGL

    -700M

    YGL

    -1000M

    YGL

    -1200M

    YGL

    -1400M

    YGL

    -1600M

    YGL

    -1900M

    Delivered heatx×104kcal/h

    15 25 30 40 60 80 100 120 140 160

    System heating efficiency(%)

    73 73 73 73 76 76 76 76 78 78

    Design pressure(Mpa)

    1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1

    Max.working temperature(ºC)

    320 320 320 320 320 320 320 320 320 320

    Medium circulation speed m 3 /h

    12.5 40 40 60 80 100 100 100 100 160

    Diameter of main pipe(DN)

    40 80 80 100 100 125 125 125 125 150

    Installation capacity(kW)

    8.5 15 18(15) 24(20) 28(25) 45(40) 53(48) 60(55) 60 80(73)

    Applicable fuel

     Soft coal and anthracitic coal



    Production Workshop


    YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube



    Certifications




    YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube



    Company Introduction


    Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
